Factory direct sale hydraulic shearing machine parts/aluminum shearing machine for sale

  • 1 - 1 Sets
    $23,000.00
  • >=2 Sets
    $22,000.00
Model Number:
QC12Y-8x6000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Max. Cutting Width (mm):
6000 mm
Max. Cutting Thickness (mm):
8 mm mm
Automatic Level:
Fully Automatic
Shearing Angle:
1.5
Blade Length (mm):
6000 mm mm
Backgauge Travel (mm):
20 - 800 mm
Throat Depth (mm):
100 mm mm
Condition:
New
Brand Name:
KingBall
Power (kW):
18.5 kW
Weight (KG):
18000 KG
Place of Origin:
Jiangsu, China
Voltage:
Any design
Dimension(L*W*H):
6880*2260*2350mm
Certification:
CE,BV,ISO9001:2008,TUV
Year:
2020
Warranty:
2 years
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Key Selling Points:
High-accuracy,High Productivity,Long Service Life
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining
Local Service Location:
France, Germany, Viet Nam, Peru, Pakistan, India, Thailand
Showroom Location:
None
Marketing Type:
Hot Product 2019
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Motor
Product name:
QC12Y Shearing Machine
Type:
Swing Beam Shear
CNC controller:
E21S,E200S,DAC310S
Usage:
Cutting Sheet Sheet
Cutting thickness:
8mm
Cutting length:
6000mm
Backgauge range:
20-800mm
Cutting material:
Metal .Alloy Metal .Aluminum
Color:
All colors
Weight:
18000kg
Supply Ability
Supply Ability:
100.0 Set/Sets per Month
Packaging & Delivery
Packaging Details
Generally shearing machines are packaged in plastic or wooden case.
Port
Shanghai port
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Video Description
Product Description

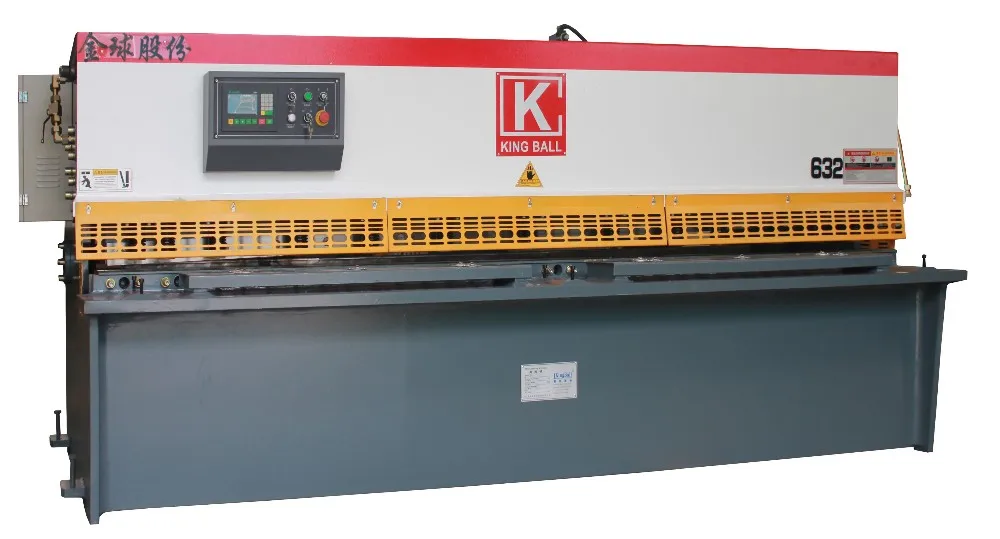

Hydraulic Swing beam Shearing Machine

Model: QC12Y-8x6000


Main Features

1) The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.

2) Indicator-based adjustment of gap of blade is convenient and fast.

3) The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.

4) The machine uses protection fence for safe operation.

5) Digital display device for size of back gauge and shearing times available.


Technical Parameters

NO.
Item
Parameter
Unit
1
Cutting thickness
8
mm
2
Cutting Length
6000
mm
3
Backgauge Range
20-800
mm
4
Material Strength
≤450
N/mm²
5
Shear Angle
1.5
°
6
Strokes
≥5
(min-1 )
7
Main motor power
18.5
KW


8


Overall dimension
L
6880
mm
W
2260
mm
H
2350
mm
9
Machine weight
18000
kg
Detailed Images

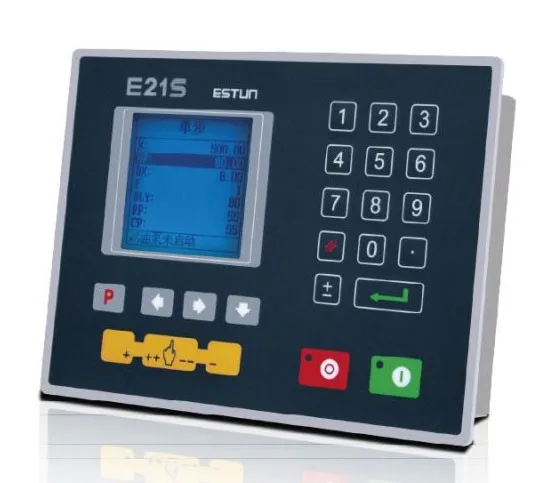

E21S Controller

* Backgauge and block control
* Control for general AC motors, frequency inverter
* Intelligent positioning
* Stock counter
*Holding/decompression time setting
* Program memory of up to 40 programs
* Up to 25 steps per program
* One side positioning
* Retract function
* One key backup/restore of parameters
* mm/inch
*Chinese /English


Main configuration

Name
Producer
CNC controller
E21S Estun                         China Brand
Main motor
Siemens                              Germany brand
Electrical components
Schneider                            France brand
Gear pump
Sunny                                   USA brand
Seal ring
NOK                                      Japan brand
Hydraulic system
Boschrexroth                      Germany brand
Ball screw
HIWIN                                   Taiwan brand
Tubing connector
EMB                                      Germany Brand
Variable frequency drive
Shihlin                                  Taiwan Brand


The standard accessories are in the below:

  1. 1. Anchor bolt                       2. Hex nut                    3. Seal ring                   4. Washer                    5. Grease gun
  2. 6. Allen wrench                    7. Feeler gauge           8. Foot switch              9. Front support arms
  3. 10. Electrical box key, control panel key                            11. Operation manuals

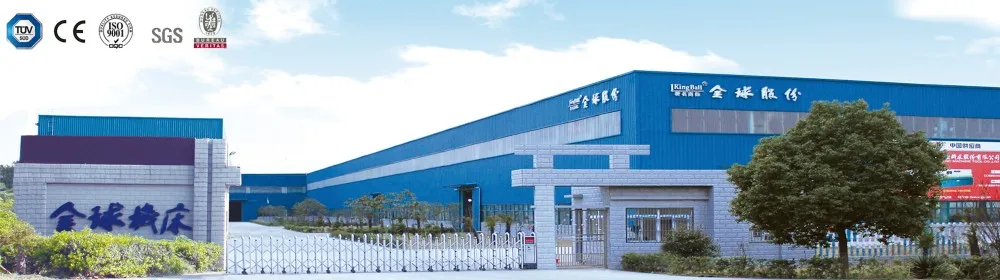

Our Fcatory&Clents

NANJING Jinqiu CNC Machine Tool Co., Ltd

has been focusing on research and design, manufacturing and sales of better prices with better quality machines such as Press Brakes, Shearing Machines,Rolling Machines,Press Machine,Ironworkers,Pipe Bend Machine, press brake tooling blade and so on, our brand is Kingball ,since it was established in 2003. Kingball is a true expert of machine- manufacturing based on almost 20 years' experience.

Certifications
National High-tech Enterprises
Our Service

Pre-Sales Service:

* Inquiry and consulting support;
* Sample testing support;
* View our Factory.

After-Sales Service:

* 2 years warranty period;

* Training how to install the machine, training how to use the machine;
* Engineers available to service machinery overseas.

Related Products

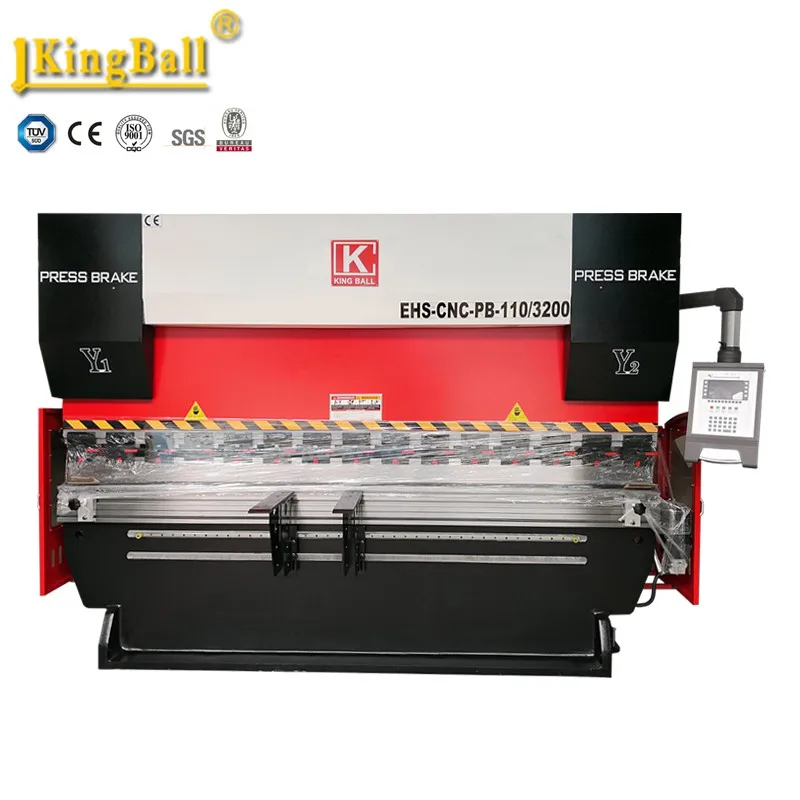

                Press Brake

             91.8%手机天天中彩票合法吗 Response Rate

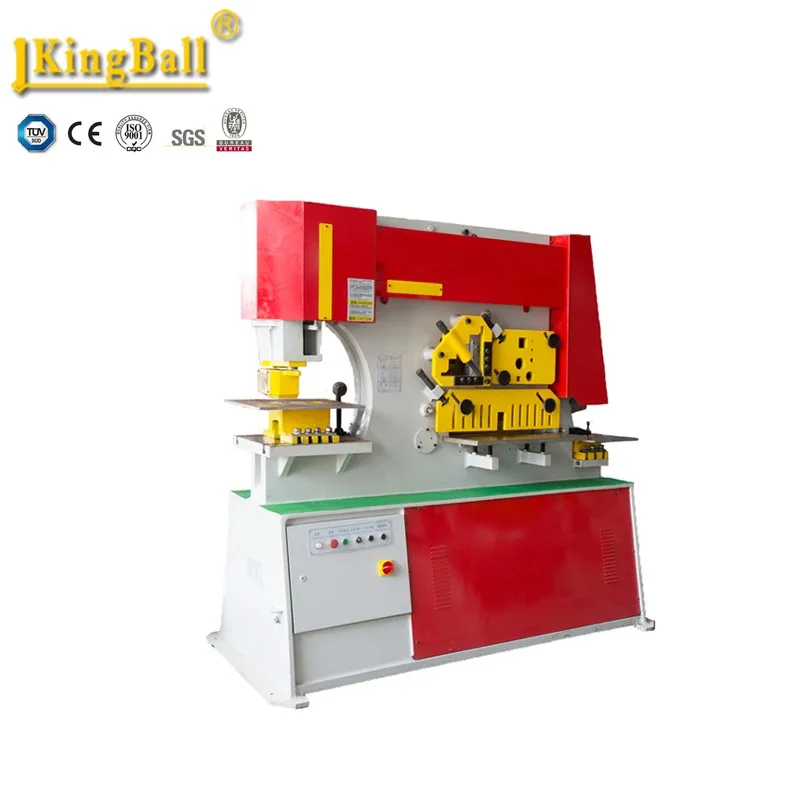

                 Iron Worker
