KCN-10032 Best Selling Products Hydraulic CNC Press Brake

  • 1 - 1 Sets
    $9,300.00
  • >=2 Sets
    $9,000.00
Nominal Pressure (kN):
1000
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Samples:
$9,300.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Slider Stroke (mm):
150 mm mm
Automatic Level:
Fully Automatic
Nominal Pressure (kN):
1000 kN
Throat Depth (mm):
320 mm mm
Machine Type:
Torsion Bar
Length of Working Table (mm):
3200 mm
Width of Working Table (mm):
3200 mm mm
Dimension:
3700x1750x2400mm
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
KINGBALL
Material / Metal Processed:
Stainless Steel, Carbon Steel, Aluminum
Automation:
Automatic
Extra Services:
End Forming
Certification:
ce
Year:
2019
Weight (KG):
6800
Motor Power (kw):
7.5 kw
Key Selling Points:
Competitive Price
Warranty:
2 years
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Local Service Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Showroom Location:
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Malaysia, Australia
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Motor
Keyword:
press brake
CNC controller:
E21 Estun China Brand
Main motor:
Siemens Germany brand
Electrical components:
Schneider France brand
Gear pump:
Sunny USA brand
Seal ring:
NOK Japan brand
Hydraulic system:
Boschrexroth Germany brand
Ball screw ,Linear guide:
HIWIN Taiwan brand
Tubing connector:
EMB Germany Brand
Weight:
6800kg
Supply Ability
Supply Ability:
100.0 Set/Sets per Month
Packaging & Delivery
Packaging Details
plastic cover or wooden case for KCN-10032 Best Selling Products Hydraulic CNC Press Brake
Port
shanghai
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated
Video Description

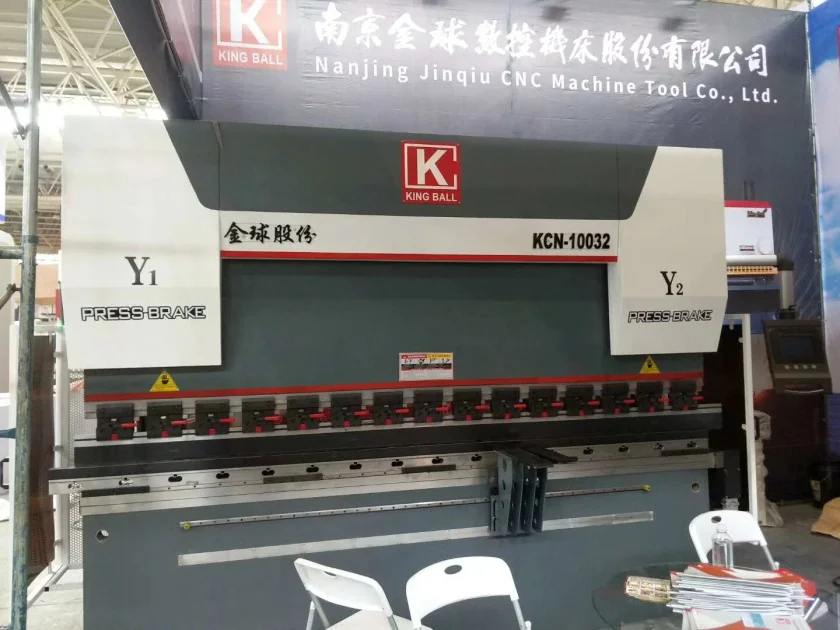

Torsion bar Synchronous NC Press Brake
Model: KCN-10032


2 Axes CNC Control(X, Y)
X: Backgauge front and back; Y: Ram stroke
W: Worktable crowning (optional)

Main functions and features
1. Overall welded and processed structure.
2. High mechanical strength and strong rigidity.
3. Ram stroke hydraulic approaching downward, stable and reliable.
4. E21 can control the movement of ram stroke and backgauge, achieving efficient and highly precise positioning.
5. Wedge compensation on top punch clamping.
6. Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision.
7. 2 Sliding front sheet support arms mounted onto T slot of the bed.
8. Solid one block four face multi V die.
9. Approved stable and reliable hydraulics.
10. Stop fingers with milscale for plate bending machine.
Technical Parameters
No.
Item
Parameter
Unit
1
Nominal pressure
1000
KN
2
Table length
3200
mm
3
Max.Slider stroke
150
mm
4
Max.Shut height
410
mm
5
Between columns
2600
mm
6
Throat depth
320
mm
7
Main motor power
7.5
KW
8
Down Speed
100
mm/s
9
Pressing Speed
10
mm/s
10
Return Speed
90
mm/s
11
Control axis
X+Y
/
12
X axis Stroke
500
mm
13
Backgauge Stoppers
2
/
14
Overall dimension
3700x1750x2400
mm
15
Machine weight
6800
kg
Detailed Pictures

Back gauge with ball screw and round guide.
Multifunction adjustment of the tightening wheel.
Germany Boschrexroth hydraulic system.
Siemens main motor German brand.
Sunny pump USA brand.
Rexroth valve German brand.
European style quick release clamping.

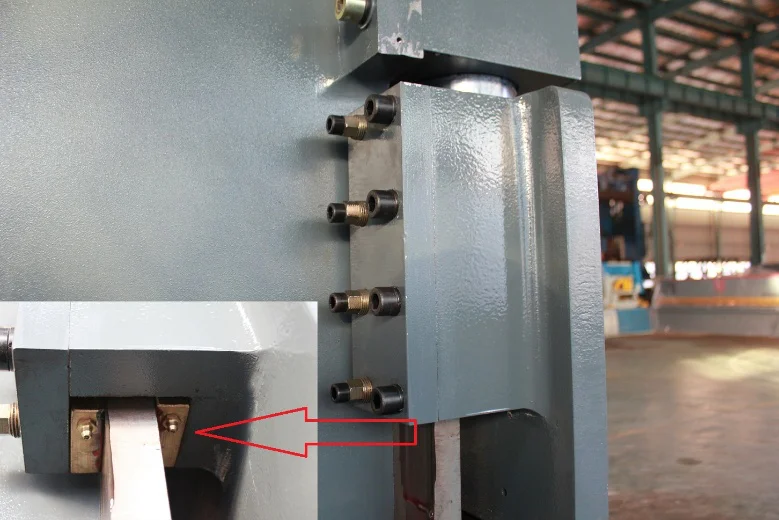

The guideway use the brass,long service life.
wear-resisting, Standard support arm.

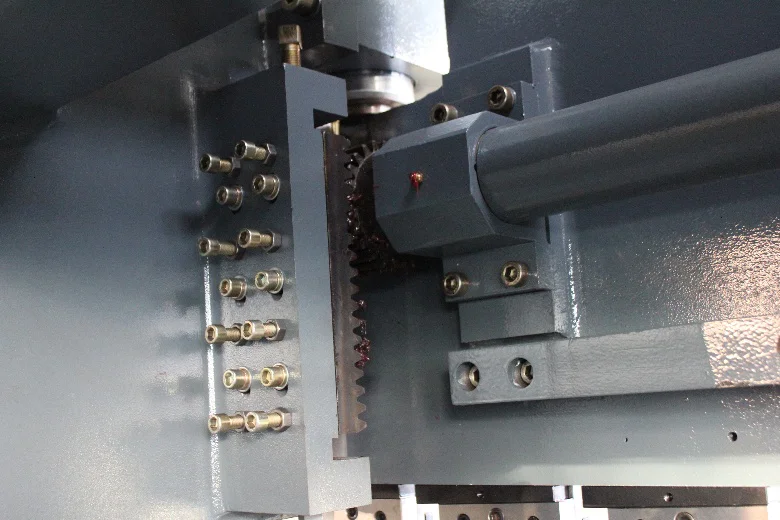

The torsion bar is synchronized with the gear rack. ram down fast, easy to adjust the two
sides of the synchronization. The connector use wear - resistant brass.
The stopper up and down by manual, move left and right on two linear guides.
Limit switch.
Pedal switch with emergency stop, safe operation, the base with rollers easy to move.
Main Configuration
No.
Name
producer
1
CNC controller
E21 Estun China Brand
2
Main motor
Siemens Germany brand
3
Electrical components
Schneider France brand
4
Gear pump
Sunny USA brand
5
Seal ring
NOK Japan brand
6
Hydraulic system
Boschrexroth Germany brand
7
Ball screw ,Linear guide
HIWIN Taiwan brand
8
Tubing connector
EMB Germany Brand
9
Variable frequency drive
Shihlin Taiwan Brand


E21 NC controller

* Backgauge and block control
* Control for general AC motors, frequency inverter Intelligent positioning
* Stock counter Holding/decompression time setting
* Program memory of up to 40 programs Up to 25 steps per program
* One side positioning Retract function
* One key backup/restore of parameters mm/inch
* Chinese /English
The standard accessories are in the below:
1. Anchor bolt
2. Hex nut
3. Seal ring
4. Gasket
5. Grease gun
6. Allen wrench
7. Foot switch
8. Front support arms
9. Electrical box key, control panel key
10. Operation manuals

Package and Shippment
our exhibition all over the world
our company introduction
Nanjing Jinqiu CNC Machine Tool Co.,Ltd
has been focusing on research and design, manufacturing and sales of better prices with better quality machines such as Press Brakes,Shearing Machines,Rolling Machines,Press Machine,Ironworkers,Pipe Bend Machine, press brake tooling blade and so on, our brand is Kingball ,since it was established in 2003. Kingball is a true expert of machine- manufacturing based on more than 15 years experience.
Our Company has got the certification of ISO9001,SGS ,CE ,TUV and BV have been exported to more than 60 countries including UK,USA, Italy, Spain, Ireland, India, Thailand, Malaysia, South Africa, and so on.
We have 28,000 square meters workshop, advanced production equipment,220 experienced staff, and strictly effective quality assurance system. Kingball selects best material and parts for the machines and the most important is Kingball manufactures most of the parts by itself for better to control the quality. Therefore Kingball brand products win the reputation of practical,reliable and durable.
Nowadays our company is developing the global market, We are currently looking for all agents and powerful cooperation globally to sell our products worldwide. We are glad to try our best to supply Free technical support and related information all of the China Machine. Any advise you have , please do not hesitate to contact with us for your requirement, thank you!
