china industrial cutter equipment of hydraulic electric E21S nc sheet metal shearing machine

  • >=1 Pieces
    $11,500.00
Model Number:
QC12Y-6x4000 E21S
Lead Time:
Quantity(Pieces) 1 - 1 2 - 100 >100
Est. Time(days) 35 90 Negotiable
Customization:
Customized logo (Min. Order: 1 Pieces)
Customized packaging (Min. Order: 1 Pieces)

More

Graphic customization (Min. Order: 1 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Max. Cutting Width (mm):
4000
Max. Cutting Thickness (mm):
6 mm mm
Automatic Level:
Semi-automatic
Blade Length (mm):
4000 mm mm
Throat Depth (mm):
100 mm mm
Condition:
New, new
Brand Name:
KINGBALL
Power (kW):
7.5 kW
Weight (KG):
8200 KG
Place of Origin:
Jiangsu, China
Voltage:
220V/380V optional
Dimension(L*W*H):
4650x1850x1700 (mm)
Certification:
CE, ISO
Year:
2019-4
Warranty:
2 years
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Key Selling Points:
Multifunctional
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Local Service Location:
Italy, Philippines, Brazil, Pakistan, India, Thailand, Kenya, Argentina, Colombia, Algeria, South Africa, Kazakhstan
Showroom Location:
None
Marketing Type:
New Product 2020
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
2 years
Core Components:
Motor
Color:
Customizable
Product name:
Shearing Machine
Cutting material:
Metal Stainless Steel Carbon Steel
Cutting thickness:
6mm
Control system:
ESTUN E21S
Brand:
KINGBALL
Cutting width:
<4000mm
After-sale service:
Engineers available to service machinery overseas
Weight:
8200 kgs
Supply Ability
Supply Ability:
10 Piece/Pieces per Month
Packaging & Delivery
Packaging Details

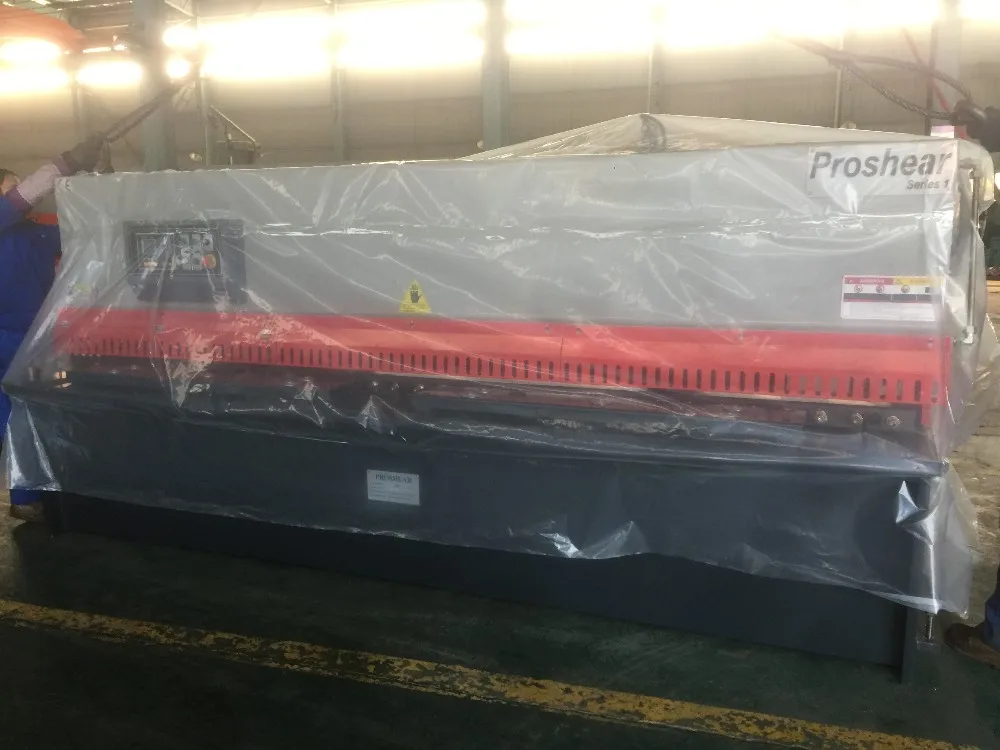

shearing machine usually packaged by plastic, toolings packaged by wooden case.
Port
shanghai
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 1 2 - 100 >100
Est. Time(days) 35 90 To be negotiated
Product Description

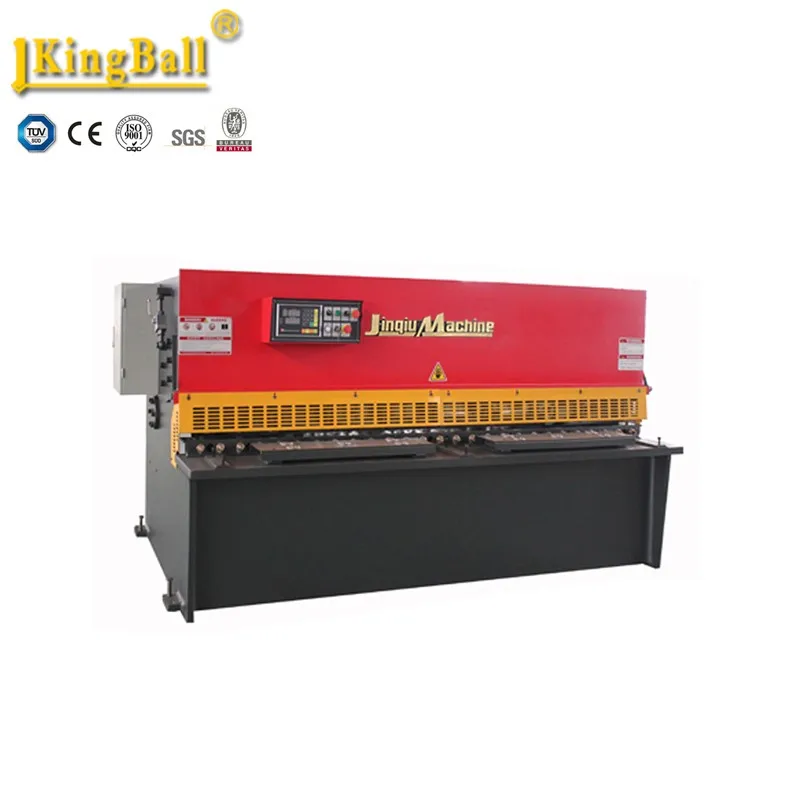

china industrial cutter equipment of hydraulic electric E21S nc sheet metal shearing machine



Model: QC12Y-6X4000

Main functions and features:

● The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.

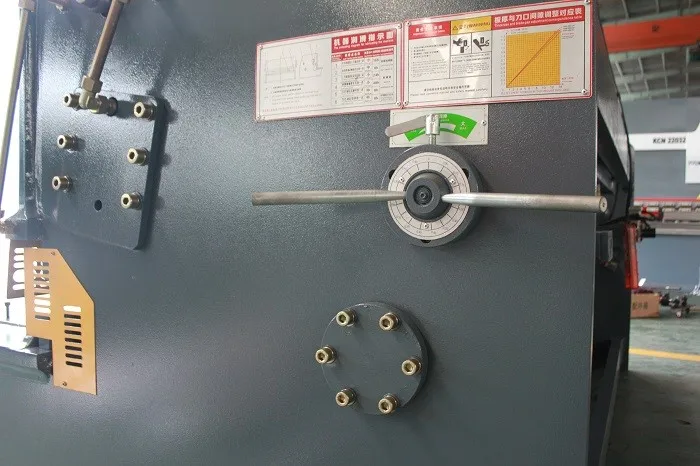

● Indicator-based adjustment of gap of blade is convenient and fast.

● The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.

● The machine uses protection fence for safe operation.

● Digital display device for size of back gauge and shearing times available.


Technical Parameters
NO.
Item
Parameter
Unit
1
Cutting thickness
6
mm
2
Cutting Length
4000
mm
3
Backgauge Range
20-600
mm
4
Material Strength
≤450
N/mm²
5
Shear Angle
0.5-2.5
°
6
Strokes
≥9
(min-1 )
7
Main motor power
7.5
KW
8
Overall dimension
4650x1850x1700
mm (LxWxH)
9
Machine weight
8200
kg

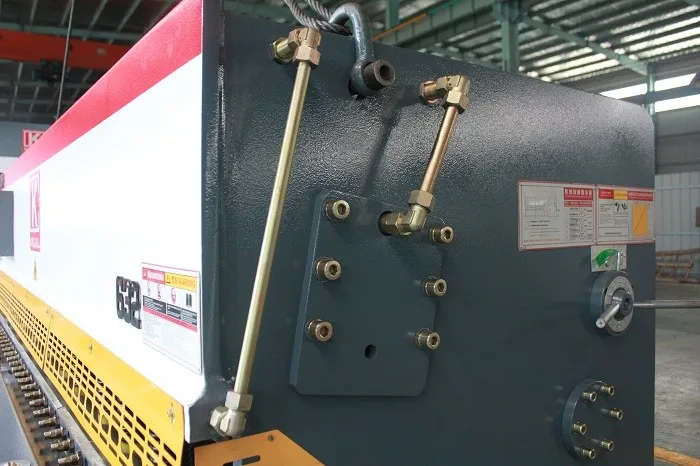

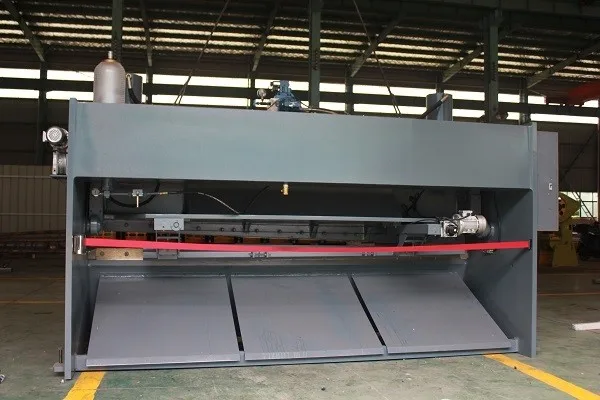

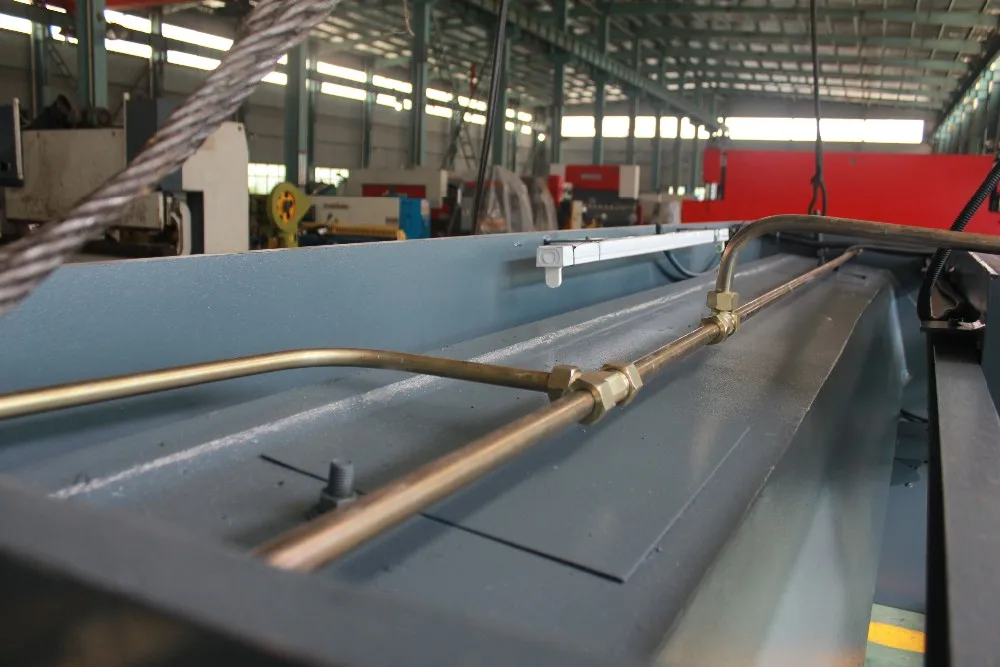

Detailed Images

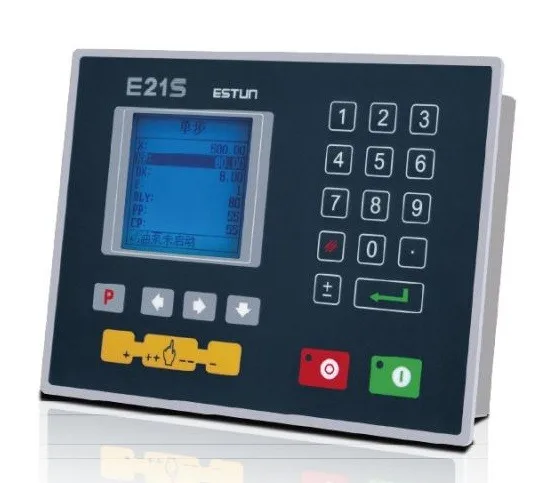

E21S Controller

1.Backgauge and block control

2.Control for general AC motors, frequency inverter

3.Intelligent positioning

4.Stock counter

5.Holding/decompression time setting

6.Program memory of up to 40 programs

7.Up to 25 steps per program

8.One side positioning

9.Retract function

10.One key backup/restore of parameters

11.mm/inch

12.Chinese /English



Main configuration

Name
Producer
CNC controller
E21S Estun   China Brand
Main motor
Siemens   Germany brand
Electrical components
Schneider   France brand
Gear pump
Sunny            USA brand
Seal ring
NOK            Japan brand
Hydraulic system
Boschrexroth     Germany                                 brand
Ball screw
HIWIN       Taiwan brand
Tubing connector
EMB      Germany Brand
Variable frequency drive
Shihlin     Taiwan Brand

The standard accessories are in the below:

1.Anchor bolt

2.Hex nut

3.Seal ring

4.Washer

5.Grease gun

6.Allen wrench

7.Feeler gauge

8.Foot switch

9.Front support arms

10.Electrical box key, control panel key

11.Operation manuals


Our Customers
Certifications

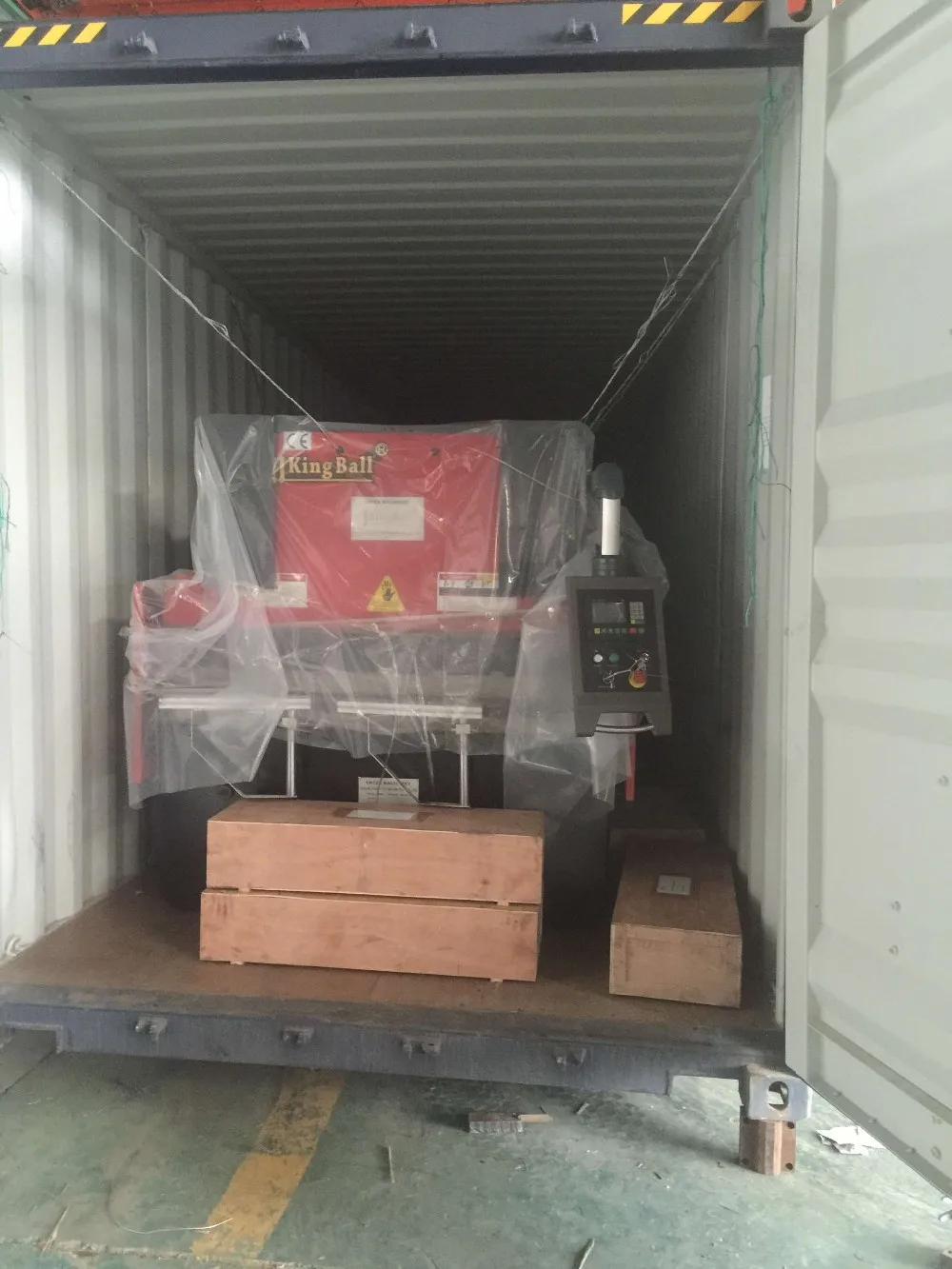

Packing & Delivery
Our Service

Pre-sales services:

1. inquiry and consulting support

2. sample testing support

3. visit our factory


After-sales services:

1. 2 years warranty period

2. training how to install and use the shearing  machine

3. engineers available to service machinery overseas
